Do I Need a New Track Bar With Leveling Kit? Complete Answer

Installing a leveling kit can improve a truck or SUV’s stance, increase front tire clearance, and remove the factory nose-down appearance. However, raising a vehicle with a solid axle also changes the position and angle of several suspension components, including the track bar.

This leads many owners to ask, do I need a new track bar with leveling kit installation? The answer depends mainly on your vehicle’s suspension design, leveling height, axle position, and how you plan to use the vehicle.

You may not need a new track bar for a mild leveling kit if the factory bar keeps the axle reasonably centered and the suspension operates without binding. However, an adjustable track bar may be needed when the lift shifts the axle noticeably to one side, affects steering geometry, limits suspension movement, or causes the tires to sit unevenly beneath the body.

Track bars are found mainly on vehicles with a solid front or rear axle, such as many Jeep Wrangler, Ram heavy-duty, and Ford Super Duty models. Trucks with independent front suspension may not use a front track bar at all. Therefore, the first step is confirming whether your vehicle has one.

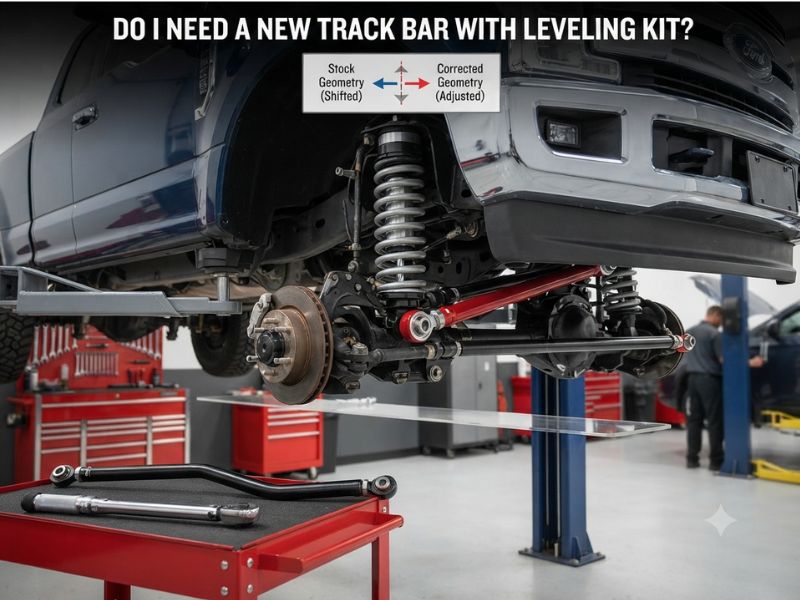

Do I Need a New Track Bar With Leveling Kit Installation?

You do not always need a new track bar with a leveling kit. Many mild suspension systems are designed to work with the original track bar, especially when the front is raised by only 1 to 2 inches.

However, a factory track bar has a fixed length. When the suspension height changes, the bar moves through an arc and can pull the axle slightly toward one side of the vehicle. The higher the suspension is raised, the more noticeable this lateral axle movement may become.

An adjustable track bar allows its effective length to be changed so the axle can be centered beneath the frame at the new ride height. Suspension manufacturers describe adjustable track bars as components used to correct axle placement and restore suspension geometry after lifting solid-axle vehicles.

A replacement track bar may be recommended when the leveling kit adds approximately 2 inches or more, but there is no universal height at which every vehicle requires one. Some suspension systems include an adjustable track bar with a 2-inch lift, while other vehicles can retain the factory bar at a similar height.

Vehicle-specific instructions should always take priority over general advice.

What Does a Track Bar Do?

A track bar, sometimes called a Panhard bar, is a suspension link that controls the side-to-side position of a solid axle.

One end of the track bar mounts to the vehicle’s frame or chassis, while the other end connects to the axle. This diagonal connection prevents the axle from shifting excessively from side to side while still allowing it to move vertically as the suspension compresses and extends.

Without a properly functioning track bar, a solid axle could move laterally beneath the vehicle. This would affect steering control, tire position, handling, and suspension stability.

The track bar also works closely with the drag link on vehicles with solid front axles. The drag link transfers steering movement from the steering gearbox to the wheels, while the track bar controls the axle’s lateral position.

For predictable handling, the track bar and drag link should operate at compatible angles. Changing suspension height can alter those angles and contribute to unwanted steering movement if the geometry is not corrected.

Does Every Truck Have a Track Bar?

No. Not every truck uses a track bar.

A track bar is primarily associated with solid-axle suspension systems. Many Jeep Wranglers, Ford Super Duty trucks, Ram 2500 and 3500 models, and other heavy-duty vehicles use a front track bar.

Some vehicles also use a rear track bar with a solid rear axle and coil-spring suspension.

Many half-ton trucks with independent front suspension, including numerous Silverado 1500, F-150, Ram 1500, Tacoma, and Tundra configurations, do not use a front track bar. Their front wheels are located by control arms, ball joints, tie rods, and other independent suspension components.

Installing a front leveling kit on an independent suspension truck may create a need for upper control arms, longer shocks, alignment correction, or other components, but not a front track bar that the vehicle never had.

Before purchasing any part, inspect the suspension or check the vehicle-specific parts diagram.

How a Leveling Kit Shifts a Solid Axle

At factory ride height, a fixed-length track bar positions the axle according to the original suspension geometry.

When a leveling kit raises the frame away from the axle, the track bar rotates downward through an arc. Because the bar cannot become longer, this movement may pull the axle toward the side where the bar attaches to the frame.

The amount of axle shift depends on the track bar’s length, mounting position, suspension height, and vehicle design.

A mild lift may move the axle only slightly. The shift may be difficult to notice without measuring from the tire or axle to the frame on both sides.

A taller lift can create a more visible difference. One tire may extend farther beyond the fender than the other, or the axle may no longer appear centered beneath the body.

An adjustable track bar corrects this problem by allowing the installer to change the bar’s length after the suspension reaches its new ride height.

Signs You May Need an Adjustable Track Bar

The clearest indication that you need an adjustable track bar is a measurable axle-position difference after the leveling kit is installed.

Park the vehicle on a flat surface with the steering wheel centered. Measure the position of the axle or tires relative to consistent points on both sides of the body or frame. If the axle is noticeably closer to one side, an adjustable bar may be appropriate.

Other possible signs include an off-center steering wheel, unusual steering response, inconsistent handling, track-bar or bracket binding, and tire clearance that differs from one side to the other.

A shifted axle can also affect the position of sway bar links, coil springs, shocks, brake hoses, and other suspension components.

Not every steering problem after leveling is caused by the track bar. Incorrect alignment, worn ball joints, loose tie rods, damaged control-arm bushings, unbalanced tires, or improper caster can create similar symptoms.

The complete suspension should be inspected before replacing parts.

Does a 2-Inch Leveling Kit Need a New Track Bar?

A 2-inch leveling kit may or may not require a new track bar.

Some solid-axle vehicles experience enough lateral axle movement at 2 inches to benefit from an adjustable bar. Several complete Jeep suspension systems in this height range include an adjustable front track bar or rear relocation bracket to correct axle position.

Other vehicles may retain acceptable axle placement with the factory track bar. The actual change depends on the original track-bar length and mounting geometry.

The kit manufacturer should state whether an adjustable bar is required, recommended, or optional. If the instructions allow the factory bar, measure the axle after installation rather than assuming it remains perfectly centered.

A replacement may still be worthwhile when the original track bar has worn bushings, a damaged joint, or excessive movement.

Does a 2.5-Inch or 3-Inch Leveling Kit Need One?

An adjustable track bar becomes more likely to be necessary as suspension height increases.

A 2.5-inch or 3-inch front lift creates a larger change in the track bar’s operating angle than a mild leveling kit. This can produce more lateral axle shift and may affect the relationship between the track bar and drag link.

At these heights, a complete suspension package may include an adjustable track bar, a track-bar relocation bracket, or both. However, these components must be matched correctly.

A relocation bracket changes the track bar’s mounting position and angle. An adjustable bar changes its effective length. They solve related but different geometry issues.

Installing an unsuitable bracket can create interference, poor steering geometry, or excessive stress on the factory mounts. Do not combine components unless the manufacturers confirm compatibility.

Adjustable Track Bar vs Relocation Bracket

An adjustable track bar allows the axle to be centered by changing the length of the bar. It is commonly used when a suspension lift pulls the axle toward one side.

A track-bar relocation bracket moves one of the mounting points. It can help correct the track bar’s angle and raise or lower its mounting position relative to the axle or frame.

On some rear suspensions, a relocation bracket is used to reduce lateral axle movement throughout the suspension’s travel. On front suspensions, track-bar brackets may be part of a larger steering-correction system.

The track bar and drag link should generally remain close to parallel and move through similar arcs. Changing only one mounting point without considering the steering linkage may contribute to bump steer.

Suspension manufacturers offer relocation systems for specific lift heights because mounting geometry has a direct effect on handling.

For a mild leveling kit, an adjustable bar is often simpler than installing a major relocation system. Taller or more complex builds may require a coordinated steering and suspension correction package.

Can You Reuse the Factory Track Bar?

You can often reuse the factory track bar when it is in good condition and the leveling kit remains within the vehicle’s supported height range.

Before reusing it, inspect the bushings, mounting bolts, joints, and brackets. Worn bushings can allow the axle to move laterally and may create clunking, loose steering, or instability.

Check the frame-side and axle-side brackets for enlarged bolt holes, cracks, rust, or damaged welds. Installing a stronger track bar will not solve a loose or damaged mounting bracket.

The mounting bolts should be tightened to the manufacturer’s torque specifications while the vehicle is at normal ride height. Incorrect torque can allow movement inside the bracket and gradually damage the bolt hole.

If the factory bar keeps the axle centered and moves freely throughout the suspension range, replacing it may provide little practical benefit.

Can a Better Track Bar Improve Steering?

A high-quality adjustable track bar can improve steering when the original bar or its bushings allow unwanted lateral movement.

Reducing track-bar flex can make the steering feel more direct and predictable. Correctly centering the axle may also improve tire clearance and the relationship between steering and suspension components.

However, a new track bar cannot correct every steering issue. It will not fix incorrect caster, damaged ball joints, loose tie rods, worn wheel bearings, poor tire balance, or unsuitable wheel offset.

It also cannot solve bump steer if the track bar and drag link operate at significantly different angles. That problem may require a complete geometry correction rather than a stronger bar alone.

The goal should be restoring proper suspension geometry, not simply installing the thickest available component.

Front Track Bar vs Rear Track Bar

Some vehicles use track bars at both the front and rear, but their correction requirements may differ.

A front leveling kit primarily affects the front suspension. If the rear height remains unchanged, the rear track bar may not require modification.

A complete lift kit that raises both ends can shift both axles. In that situation, the front may use an adjustable track bar while the rear uses an adjustable bar or relocation bracket.

Always evaluate the front and rear separately. A kit advertised as a leveling system may include rear springs or spacers, which can change rear axle position even when the main goal is correcting front rake.

Track Bar Length and Suspension Travel

A track bar must be adjusted at the correct ride height. Making it too long or too short can push the axle toward the opposite side and create unnecessary pressure on the suspension.

The bar must also allow the suspension to move through compression and extension without contacting the differential cover, steering components, frame, or other parts.

After installation, the suspension should be checked at full steering lock and throughout its expected travel. Brake lines, ABS wiring, sway bar links, coil springs, shocks, and driveshafts should also be inspected for adequate clearance.

Off-road vehicles require particular attention because they use more suspension articulation than street-driven trucks.

Can a Worn Track Bar Cause Death Wobble?

A worn or loose track bar can contribute to severe steering oscillation commonly called death wobble on solid-front-axle vehicles.

The track bar is responsible for controlling lateral axle movement. Worn bushings, loose bolts, damaged brackets, or enlarged mounting holes can allow the axle to shift when the tires hit a bump.

However, death wobble is rarely diagnosed by replacing one part without inspection. Other contributing factors may include ball joints, tie rods, drag links, wheel bearings, alignment, tire condition, and steering components.

A leveling kit may expose an existing weakness by changing suspension geometry, but the kit itself is not always the root cause.

Every joint, bracket, bolt, and alignment measurement should be checked before selecting a repair.

How to Choose the Right Track Bar

Choose a track bar designed for your exact vehicle, model year, axle, suspension configuration, and lift range.

The adjustment range should include the actual suspension height. A bar intended for a 4-inch lift may not adjust correctly for a 1.5-inch leveling kit.

Look for strong mounting hardware, quality bushings or joints, proper clearance, and replacement service parts. A greaseable or rebuildable joint may be useful for off-road applications but can require more maintenance than a sealed factory-style bushing.

Follow the manufacturer’s instructions for bar length, joint orientation, torque specifications, and post-installation inspection.

After centering the axle, complete a professional wheel alignment and center the steering wheel using the correct steering adjustment. Do not use the track bar itself to compensate for unrelated alignment problems.

Final Thoughts

So, do I need a new track bar with leveling kit installation? Not always. A mild leveling kit may work correctly with the factory track bar when the axle remains centered, the original bushings are in good condition, and the suspension moves without binding.

An adjustable track bar becomes more valuable when the leveling kit shifts a solid axle to one side, creates poor track-bar geometry, or exceeds the adjustment limits of the factory suspension. Taller 2.5-inch to 3-inch setups are more likely to need axle-position correction than a small 1-inch lift.

Confirm that your vehicle actually uses a track bar, follow the leveling-kit manufacturer’s requirements, and measure axle position after installation. The correct track bar setup helps maintain centered axle placement, predictable steering, proper tire clearance, and reliable suspension movement.
